AIO 10.5kW Commercial Steam Generator

AIO 10.5kW Commercial Steam Generator

AIO 15kW Commercial Steam Generator

AIO 15kW Commercial Steam Generator

AIO 12kW Commercial Steam Generator

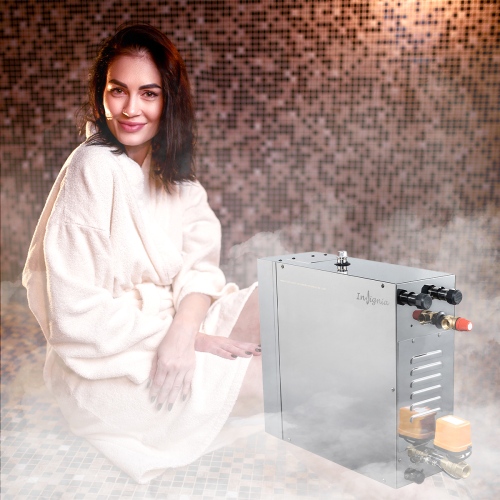

The NEW Insignia AIO steam generator has been especially designed and developed to bring you a high quality, robust and intelligent system with many exciting new accessories and features, ideal for a steam room setting within a commercial environment.

Key Features

  • Superior quality steam generator
  • Fast start steam
  • Overheat protection technology
  • Sectional heating technology
  • Low water level protection
  • Low maintenance
  • Easily Accessible Service Hole
  • Waterproof Touch Screen Control Panel
  • Available in 7.5kW, 10.5kW, 12kW, 15kW and 18kW
  • 12-month warranty, which upgrades to two years when a water softener or water processor is fitted
Special Price £2,370.25 Regular Price £2,495.00

Features

  • Superior quality steam generator
  • Fast start steam
  • Overheat protection technology
  • Sectional heating technology
  • Low water level protection
  • Low maintenance
  • Easily Accessible Service Hole
  • Waterproof Touch Screen Control Panel
  • Available in 7.5kW, 10.5kW, 12kW, 15kW and 18kW
  • 12-month warranty, which upgrades to two years when a water softener or water processor is fitted



The NEW Insignia AIO steam generator has been especially designed and developed to bring you a high quality, robust and intelligent system with many exciting new accessories and features, ideal for a steam room setting within a commercial environment.

The Insignia AOI also comes with intelligent fast start steam. After the user activates the steam button, the steam will begin at 30 seconds, the water will be kept at 80°C and a 30-minute steam cycle will then run and switch off until it is re-activated by the user. This function is highly efficient and energy saving, especially for commercial use.

Overheat protection technology, ensures that should the room temperature reach 2°C higher than the programmed setting, then all the heating elements stop working and go into a preservation state until the temperature drops. Additionally, should the water tank temperature reach over 115 °C the steam generator will stop further heating until it drops to a safe temperature, ensuring the safety of the user and longevity of the generator.

You can rest assured that whether for heavy duty domestic or commercial use, the Insignia AIO is built to an exceptionally high standard and will deliver day after day. With many exciting add-ons, the AIO allows for many customisable features allowing you to create the perfect steam room for your business.

The AIO Insignia Steam Generators are the most superior within the steam generator range, and as such come with a 12-month warranty for peace of mind, which upgrades to two years when a water softener or water processor is fitted.

Available in sizes 7.5kW, 10.5kW, 12kW, 15kW and 18kW.

More Information
SKU T12-COM
Product Support Page None selected
Restricted Product No
Customer Questions

New to Steam Showers?
Questions about Insignia's innovations?
Just need an answer?

We understand that everyone will have questions when it comes to selecting the perfect shower. So Insignia have put together a dedicated knowledge centre just to help you. Please visit
https://support.insigniashowers.com

Dimensions & Technical Data

Technical information and Installation Manual



Elecrical Specification

  • The rated power is measured under single phase 230V, therefore the actual operating power under single phase 215-240V, 50/60Hz, or three phases 380-415V, 50/60Hz may be different from the rated value.
  • 3KW and 4KW machine, can be only under 215-240V single phase. Please note the earth wire should not less than 1.5mm².
  • From 4.5KW to 8KW machine, can be made as 215-240V single phase or 380-415V three phases. Please note the earth wire should not be less than 1.5mm², the live wire and null wire should not less than 2.5mm².
  • More than 9KW machine, can be only be installed by 380-415V three phases. Please note the earth wire should



Safety Warning

  • This appliance is not intended for use by person with reduced physical, sensory or mental capabilities, under 16 years old, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Check steam room before restart the controller.
  • Smoking and alcohol are not permitted inside the steam room.
  • Leave the steam room immediately if you feel uncomfortable or unwell.
  • A ventilation fan is recommended for the steam room.
  • This steam generator is for heating up the steam room, never undertake any change to the system by yourself, unless under the help or the guide of someone who can be responsible for the safety.



Technical information and Installation Manual



Elecrical Specification

  • The rated power is measured under single phase 230V, therefore the actual operating power under single phase 215-240V, 50/60Hz, or three phases 380-415V, 50/60Hz may be different from the rated value.
  • 3KW and 4KW machine, can be only under 215-240V single phase. Please note the earth wire should not less than 1.5mm².
  • From 4.5KW to 8KW machine, can be made as 215-240V single phase or 380-415V three phases. Please note the earth wire should not be less than 1.5mm², the live wire and null wire should not less than 2.5mm².
  • More than 9KW machine, can be only be installed by 380-415V three phases. Please note the earth wire should



Safety Warning

  • This appliance is not intended for use by person with reduced physical, sensory or mental capabilities, under 16 years old, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Check steam room before restart the controller.
  • Smoking and alcohol are not permitted inside the steam room.
  • Leave the steam room immediately if you feel uncomfortable or unwell.
  • A ventilation fan is recommended for the steam room.
  • This steam generator is for heating up the steam room, never undertake any change to the system by yourself, unless under the help or the guide of someone who can be responsible for the safety.
