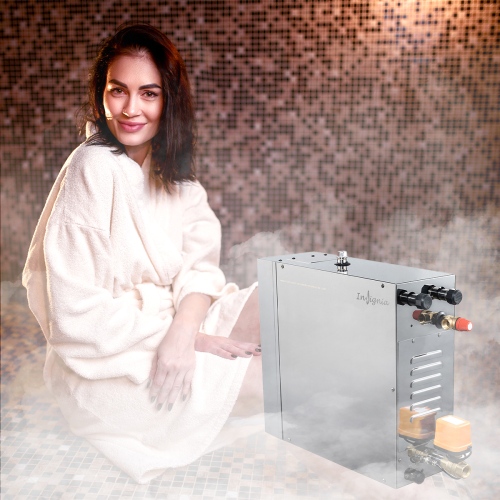

The NEW Insignia AIO steam generator has been especially designed and developed to bring you a high quality, robust and intelligent system with many exciting new accessories and features, ideal for a steam room setting within a commercial environment.

Key Features

  • Superior quality steam generator
  • Fast start steam
  • Overheat protection technology
  • Sectional heating technology
  • Low water level protection
  • Low maintenance
  • Easily Accessible Service Hole
  • Waterproof Touch Screen Control Panel
  • Available in 7.5kW, 10.5kW, 12kW, 15kW and 18kW
  • 12-month warranty, which upgrades to two years when a water softener or water processor is fitted
Special Price £3,035.25 Regular Price £3,195.00

Features

  • Superior quality steam generator
  • Fast start steam
  • Overheat protection technology
  • Sectional heating technology
  • Low water level protection
  • Low maintenance
  • Easily Accessible Service Hole
  • Waterproof Touch Screen Control Panel
  • Available in 7.5kW, 10.5kW, 12kW, 15kW and 18kW
  • 12-month warranty, which upgrades to two years when a water softener or water processor is fitted



The NEW Insignia AIO steam generator has been especially designed and developed to bring you a high quality, robust and intelligent system with many exciting new accessories and features, ideal for a steam room setting within a commercial environment.

The Insignia AOI also comes with intelligent fast start steam. After the user activates the steam button, the steam will begin at 30 seconds, the water will be kept at 80°C and a 30-minute steam cycle will then run and switch off until it is re-activated by the user. This function is highly efficient and energy saving, especially for commercial use.

Overheat protection technology, ensures that should the room temperature reach 2°C higher than the programmed setting, then all the heating elements stop working and go into a preservation state until the temperature drops. Additionally, should the water tank temperature reach over 115 °C the steam generator will stop further heating until it drops to a safe temperature, ensuring the safety of the user and longevity of the generator.

You can rest assured that whether for heavy duty domestic or commercial use, the Insignia AIO is built to an exceptionally high standard and will deliver day after day. With many exciting add-ons, the AIO allows for many customisable features allowing you to create the perfect steam room for your business.

The AIO Insignia Steam Generators are the most superior within the steam generator range, and as such come with a 12-month warranty for peace of mind, which upgrades to two years when a water softener or water processor is fitted.

Available in sizes 7.5kW, 10.5kW, 12kW, 15kW and 18kW.

More Information
SKU T15-COM
Product Support Page None selected
Restricted Product No
Customer Questions

New to Steam Showers?
Questions about Insignia's innovations?
Just need an answer?

We understand that everyone will have questions when it comes to selecting the perfect shower. So Insignia have put together a dedicated knowledge centre just to help you. Please visit
https://support.insigniashowers.com

Dimensions & Technical Data

Technical information and Installation Manual



Electrical Specification

  • Single Phase units are 230V, 50/60Hz
  • Three Phase units are 380-415V, 50/60Hz
  • 3kW and 4kW steam generators can only be installed in single phase.
  • 4.5kw to 8kW steam generators can be installed in both single phase and three phase.
  • 9kW steam generators and above can only be installed in three phase.
  • All electrics should be installed by a fully qualified electrician.



Safety Warning

  • Never allow children to use the steam function. This function is for ADULTS ONLY.
  • Always be aware of the steam outlet position. Never use in close proximity to the person using it.
  • Exit the steam room immediately if feeling dizzy, faint or short of breath.
  • Do NOT use the steam room if you’re pregnant, have a heart condition, have low or high blood pressure. If you’re unsure consult your GP before use.
  • If you have any underlying health conditions which you feel could be aggravated by using a steam room, consult your GP before use.
  • If you begin to have any issues with your health after using a steam room, stop immediately and consult your GP regarding your symptoms before continuing to use.
  • Consult your GP before using the steam room if you’re on medication at all, especially with drowsy side effects.
  • Never use this steam room if you have been drinking alcohol or under the influence of other substances.
  • Always turn power supply off after use.
  • Proper ventilation is recommended for the steam room.



Technical information and Installation Manual



Electrical Specification

  • Single Phase units are 230V, 50/60Hz
  • Three Phase units are 380-415V, 50/60Hz
  • 3kW and 4kW steam generators can only be installed in single phase.
  • 4.5kw to 8kW steam generators can be installed in both single phase and three phase.
  • 9kW steam generators and above can only be installed in three phase.
  • All electrics should be installed by a fully qualified electrician.



Safety Warning

  • Never allow children to use the steam function. This function is for ADULTS ONLY.
  • Always be aware of the steam outlet position. Never use in close proximity to the person using it.
  • Exit the steam room immediately if feeling dizzy, faint or short of breath.
  • Do NOT use the steam room if you’re pregnant, have a heart condition, have low or high blood pressure. If you’re unsure consult your GP before use.
  • If you have any underlying health conditions which you feel could be aggravated by using a steam room, consult your GP before use.
  • If you begin to have any issues with your health after using a steam room, stop immediately and consult your GP regarding your symptoms before continuing to use.
  • Consult your GP before using the steam room if you’re on medication at all, especially with drowsy side effects.
  • Never use this steam room if you have been drinking alcohol or under the influence of other substances.
  • Always turn power supply off after use.
  • Proper ventilation is recommended for the steam room.
